What Makes a Self-Cleaning Litter Box Human-Centered?

A self-cleaning litter box should make cat care easier. Yet many owners discover that a machine can save daily scooping only to create a dreaded deep clean.

The frustrations are familiar: kneeling to inspect walls, lifting bulky parts, reaching into narrow gaps, confronting trapped odour, and troubleshooting interrupted cycles.

This guide turns those everyday realities into a practical test for human-centered litter box design, so you can judge whether automation truly reduces work—or simply moves it to a harder day.

What “Human-Centered” Means in Litter Box Design

Human-centered litter box design is the practice of shaping every recurring care task around real human reach, strength, attention, mobility, and error—not merely automating the scooping cycle.

That definition matters because “automatic” describes what the machine does. “Human-centered” describes what the owner must still do.

The Task Test

List every action that remains after purchase:

1. Add litter.
2. Empty and reline the waste drawer.
3. Wipe soiled surfaces.
4. Remove trapped litter.
5. Take parts apart and wash them.
6. Reassemble the unit correctly.
7. Respond to a jam, full bin, or power interruption.

A thoughtful design reduces the frequency, physical effort, and uncertainty of those tasks. It does not hide them behind the word “smart.”

The Failure Test

The best time to judge a product is not when it works perfectly.

Ask what happens when a cat urinates high, soft stool sticks to a wall, litter is overfilled, the drawer becomes heavy, or the internet is unavailable.

Human-centered design makes abnormal situations visible and recoverable. Clear alerts, accessible surfaces, and safe stopping behaviour matter more in year two than an impressive first-day demonstration.

The Hidden Trade-Off: Automation Can Move the Work

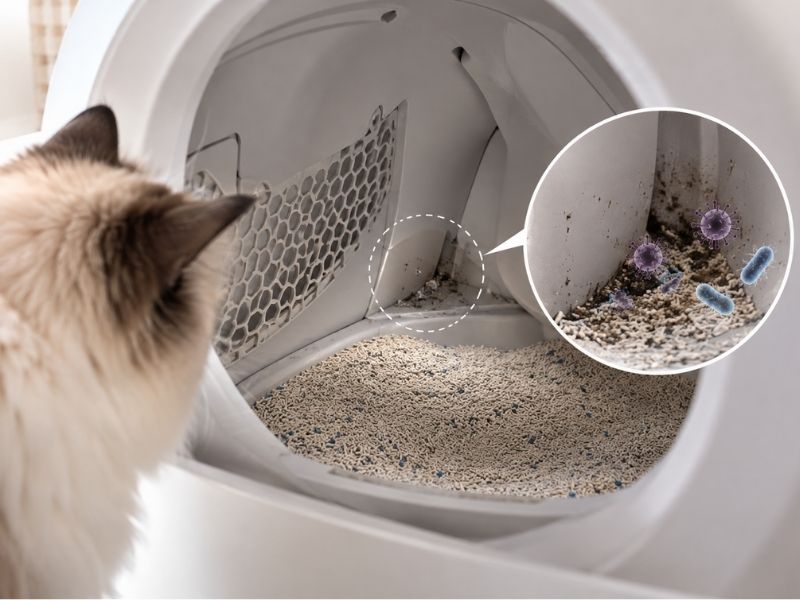

After years with an automatic litter box, some owners find that litter works its way into small gaps and the machine is difficult to move for a proper wash.

Others happily accept a monthly deep clean because it replaces frequent scooping. That difference is exactly why there is no universal winner.

For another household, six months of automation may lead back to manual scooping. The routine can still involve bending down to inspect the litter level and walls, wiping stuck waste, and facing concentrated odour when opening the drawer.

For anyone with limited mobility or back pain, those less-visible tasks can matter more than the scoop itself.

The useful conclusion is not that automatic boxes are good or bad. It is that labour must be measured across the full maintenance cycle, including daily work, periodic deep cleaning, and fault recovery.

Seven Design Tests That Matter in Everyday Life

1. Reach, Remove, and Wash

An easy-to-clean litter box should let an adult hand reach common soil points without twisting.

Parts that contact litter, urine, or faeces should detach in a few understandable steps. The product should also clearly identify which parts are washable.

Look beyond a removable globe. Check the base, seams, sifter, waste opening, and the route liquid would take after a high-wall urination event.

2. Move Without Heavy Lifting

Cleaning often begins by pulling the unit away from a wall.

Wheels reduce strain only if they remain stable during use. Handles help only when they support a balanced, safe lift.

This is especially important for people with limited mobility, small bathrooms, or no outdoor washing area. Accessibility is not a niche feature; it is a realistic household condition.

3. Contain Odour at Every Stage

Odour control is a system, not a fragrance.

It requires timely clump removal, a sealed waste path, fewer places for residue to collect, and surfaces that owners can actually clean.

There is also an important boundary: if urine or stool suddenly smells unusually foul, contact a veterinarian. A deodoriser should never mask a potential health change.

4. Prevent Leaks and Tracking Before Cleanup Starts

A raised barrier, effective entry step, and litter-compatible sifter can reduce what reaches the floor.

A leak channel should direct liquid to a visible, cleanable area instead of allowing it to seep into electronics or structural cavities.

Prevention is more human-centered than asking the owner to discover hidden contamination later.

5. Put Routine Supplies Where the Task Happens

Changing bags and topping up litter are small jobs, but they interrupt the routine again and again.

Built-in bag storage, an obvious fill line, and dependable level detection reduce the searching and checking that make cat care feel fragmented.

Auto-refill is useful when it maintains a consistent litter bed without overfilling. The owner should still be able to inspect the level and know when the reservoir needs attention.

6. Stop Safely and Explain What Happened

A self-cleaning litter box must stop when a cat approaches or enters.

Redundant sensing is stronger than relying on one signal. A stall should also produce a clear alert instead of leaving the owner to guess what happened.

Reports involving unsafe low-cost machines should be taken seriously. Keep a conventional litter box during the transition, investigate the machine’s movement and closing geometry, and never assume that an app proves physical safety.

7. Fit the Cat as Well as the Person

Human-centered cannot mean human-only.

A large or long-bodied cat needs room to enter, turn, dig, and exit. A senior cat may need a low step or ramp, while a cautious cat may need a slower introduction.

In a multi-cat home, individual identification can improve observation, but it does not guarantee peaceful sharing. Provide enough toileting options for the cats you actually have.

How CATLINK C07 Responds to These Pain Points

The CATLINK Scoop Robot C07 approaches convenience as a complete care loop.

Its design aims to help the cat enter comfortably, keep the litter bed usable, remove waste, make the remaining cleaning easier, and explain what happened while the owner was away.

Less Checking, Not Just Less Scooping

The 4L refill reservoir monitors the litter supply, adds more when required, and rotates the globe to level the litter bed.

This addresses a less obvious part of litter-box maintenance: repeatedly checking whether enough litter remains and manually spreading it after a refill.

A sealed 15L waste drawer reduces emptying frequency. Spare waste bags are stored directly in the unit, close to where the bag-changing task happens.

CATLINK states that the system can support up to 20 days between routine litter-care tasks under its defined single-cat laboratory conditions.

This is a planning maximum, not a guarantee. Cat number, body size, litter type, clump volume, and visit frequency will affect the real interval.

Deep Cleaning Designed as a Sequence

The large entrance gives an adult arm more room for quick wiping when residue appears on an interior surface.

When deeper washing becomes necessary, the cleaning process continues as a sequence rather than a single removable part:

1. Wheels help pull the unit away from the wall.
2. The globe releases in three steps.
3. An integrated handle supports safer removal.
4. Washable contact components can be placed flat.
5. An integrated drain helps water escape.
6. The components can then be left to air-dry.

Each feature removes one awkward movement from a task owners often postpone.

This matters because an automatic litter box is only truly easier to maintain when the dirty areas can be reached, removed, washed, drained, and reassembled without turning cleaning day into a lifting project.

Mess Prevention Before Odour Control

C07 uses a curved sifter intended to reduce waste buildup during the cleaning cycle.

Dual anti-tracking structures help keep litter from leaving the entrance, while a wrap-around leak-guiding channel is designed to catch liquid from cats that urinate toward the wall.

These features address the source of the problem before odour control begins.

After clumps are removed, they enter a sealed waste drawer supported by a five-stage odour-control path, including the drawer seal, waste bag, brush seal, deodorising gel, and active-oxygen treatment described by CATLINK.

This order matters. Fragrance cannot compensate for urine or waste trapped in a place the owner cannot reach.

More Room for Large and Cautious Cats

The 82L cabin, maximum 43cm opening, and 45-degree interior depth give larger or long-bodied cats more room to enter, turn, dig, and leave.

A wide entrance can also feel less restrictive to cats that hesitate around enclosed litter boxes.

Space alone cannot guarantee acceptance, but it removes one common reason a cat may reject an automatic box: feeling physically cramped at the entrance or inside the cabin.

Owners should still introduce the new unit gradually and retain a familiar litter box during the transition.

Dual Views for Multi-Cat Homes

Weight data can tell you that pressure was placed on the litter box, but it cannot always explain what actually happened.

C07 combines an exterior camera with an interior camera. The exterior view can show which cat approached, circled, entered, or walked away. The interior view can provide context about the toileting visit and the visible condition of the waste.

Together with the app timeline, these views can help distinguish between:

• A cat that merely approached the unit;
• A cat that entered but did not eliminate;
• A completed toileting visit;
• A change in visit duration or frequency;
• A visible change that may deserve closer observation.

This is particularly relevant in multi-cat homes, where a general litter-box alert may not reveal which cat generated it.

These records are observation tools. They do not provide a veterinary diagnosis and should not replace professional care when a cat shows persistent changes in elimination, appetite, or behaviour.

Safety That Does Not Depend on One Sensor

C07 uses a side-rolling structure that keeps an open route instead of closing the entrance like a door.

Its safety system combines several forms of detection:

• Anti-pinch detection stops movement when contact is detected;
• Motor-stall detection stops the motor when something obstructs it;
• Infrared monitoring detects an approaching cat;
• Weight sensing pauses operation when a cat steps onto the unit;
• Radar presence detection monitors nearby movement;
• Waste-drawer and door-position monitoring identify conditions requiring attention.

The important design principle is redundancy. Safety should not depend on one sensor interpreting every situation correctly.

A screen and physical controls also keep basic operation visible at the machine instead of placing every function inside an app. That reduces the operating barrier for family members who simply need to start, pause, or understand the current status.

These are manufacturer-stated design features, not an independent safety certification or a promise that every cat will accept the unit.

Follow the manual, respect all age and weight requirements, supervise the introduction, and keep a familiar backup tray while the cat adjusts.

Common Misconceptions About Self-Cleaning Litter Boxes

“Self-Cleaning Means Maintenance-Free”？

No. Self-cleaning primarily automates clump removal.

Owners must still manage waste, replenish litter, remove residue, check sensors, and perform periodic washing.

“A Sealed Box Cannot Smell”

Sealing delays odour release; it does not destroy the source.

Drawer seals, leak prevention, cleaning access, and emptying frequency must work together.

“One Automatic Box Replaces Every Conventional Box”

Not automatically.

Some cats refuse moving or enclosed devices. Relationships in a multi-cat household can also change access to a shared litter box.

Keep a familiar tray during the transition and retain a backup after the cat has adjusted.

“More Technology Always Means Less Work”

Only technology that shortens real tasks reduces work.

Cameras, apps, and alerts can improve visibility. Removable parts, reachable surfaces, and simple fault recovery determine the physical cleaning burden.

“A Bad Litter-Box Smell Is Always a Cleaning Problem”

No. A sudden or unusually strong change in urine or stool odour can accompany a health issue.

Seek veterinary advice when the change persists or appears alongside changes in appetite, elimination, or behaviour.

Frequently Asked Questions

Is a Self-Cleaning Litter Box Actually Easier to Clean?

It is easier only when the reduction in daily scooping outweighs the periodic deep-cleaning work.

Choose removable washable parts, few soil-trapping seams, easy movement, and a clear reassembly process.

Do Self-Cleaning Litter Boxes Control Odour Better?

They can reduce everyday odour by removing clumps promptly and sealing waste.

They can still smell when residue sticks to an interior surface, liquid enters a hidden area, or the waste drawer remains full.

What Should Someone With Back Pain or Limited Mobility Check?

Check the lowest required reach, the weight of the full waste drawer, wheel stability, handle placement, available washing location, and the number of disassembly steps.

Do not treat “no scooping” as a complete accessibility claim.

Are Automatic Litter Boxes Safe for Cats?

Safety depends on physical geometry, stopping logic, and redundant detection—not automation alone.

Confirm that the unit stops when a cat approaches, follow all weight and age limits, supervise the introduction, and keep a conventional backup box.

Will Several Cats Use One Self-Cleaning Litter Box?

Some will, but acceptance cannot be guaranteed.

Introduce the unit gradually, keep existing boxes available, and watch for signs that one cat guards or avoids the shared unit.

The Best Design Removes Friction, Not Responsibility

The most human-centered litter box is not necessarily the one with the longest feature list.

It is the one that reduces repeated effort, keeps dirty areas accessible, prevents predictable messes, explains failures clearly, and protects the cat throughout every cleaning cycle.

Use the seven tests above to evaluate the complete care journey—not only the automatic scooping demonstration.

If auto-refill, accessible disassembly, guided leak control, multi-cat records, and redundant safety detection match your household’s needs, explore the CATLINK C07 specifications and cleaning details before deciding.
